Overview:

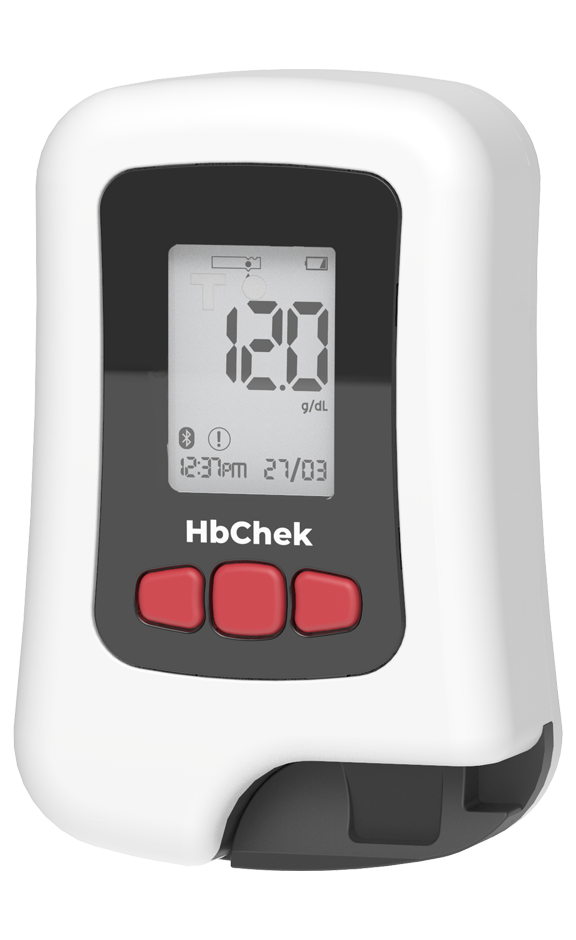

The Biosense HbChek meter is designed for a quantitative point of care for whole blood hemoglobin determination in primary care or blood donation systems.

HbChek is in Vitro Diagnostic(IVD) medical device.

Show Interest

Features
How to use

Test Principle :
Transmittance/Absorbance Spectrophotometry
Measuring Range :
0 to 25 g/dL
Sample Type :
Fresh Capillary blood or Venous blood (EDTA anti-coagulated)
Sample Volume :
~ 8µl
Precision :
CV<3%
Reading Time :
Quick result in few seconds
Power :
3*AAA Alkaline Batteries/Rechargeable batteries can be used
Size & Weight :
Hand held & light weight(~ 250gms)
Temperature :
0°C-50°C
Connectivity :
Smart Bluetooth (BLE)
Calibration :
Factory calibrated, No need to recalibrate in field

Step 1 : Wash hands using soap and warm water. Rinse and dry thoroughly.

Step 2 : Turn on the meter by pressing-releasing the power button.

Step 3 : Remove a test strip from the vial.

Step 4 : Prick a finger to obtain a blood sample.

Step 5 : Touch and hold the drop of blood to the pointed edge of test strip. The blood is drawn into the test strip by capillary action

Step 6 : Once the blood fills the test strip chamber.Insert the test strip into the HbChek meter.

Step 7 : Your Hemoglobin result will appear on the display window.

Step 8 : Remove the test strip from the meter and discard it. The meter will automatically turned off or long press power button to turn off.

Diabetes

Anaemia

Malnutrition

Consumables

Hemoglobin

Overview:

Work With :

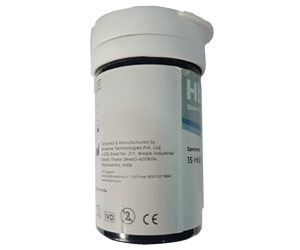

HbChek Test Strip

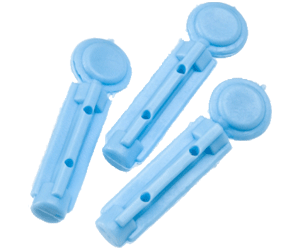

Regular Lancets

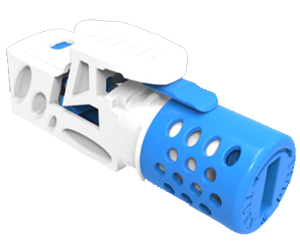

Safety Lancets
